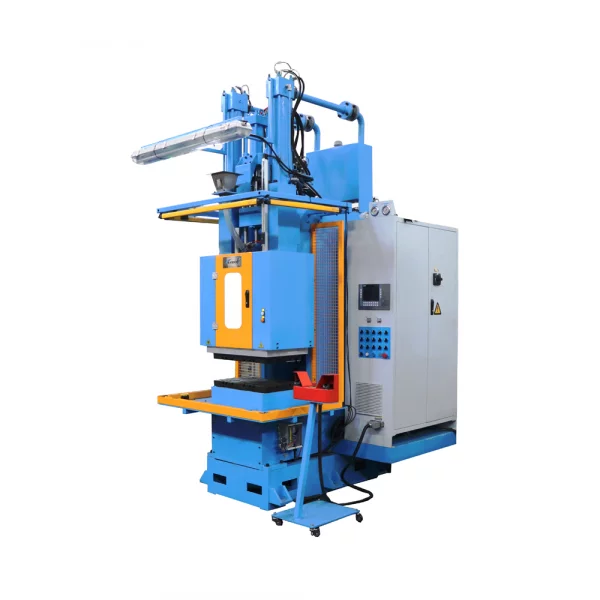

The problem is structural: as manufacturers push larger seals and complex profiles, presses built for light production simply can’t hold geometry under load. Equipment spec must change sooner than later, which is why lines coming from a trusted rubber injection molding machine manufacturer matter more than price alone. In markets like Detroit and Stuttgart, OEMs now demand clamp force frequently above 1,000 kN for heavy rubber gaskets, and platen stiffness becomes the primary limiter to repeatable part geometry.
Where high-tonnage clamping trips up
Failures cluster around a few mechanical truths. Platen deflection and uneven tie-bar loading cause flash and short-shot parts. Undersized hydraulic cylinders or poorly tuned toggle mechanisms produce inconsistent clamp force across the mold face. Thermal expansion of the tooling and insufficient cooling channels change part dimensions over long runs. Shot size and cycle time are operational levers, but they can’t fix a weak structural design.
Blueprint essentials: engineering for stiffness and repeatability
A high-stiffness turnkey solution begins with a press frame sized for moment loads, not just static tonnage. Increase platen thickness and optimize ribbing to reduce bending; specify tie bars with higher yield strength and larger diameter to control shear and maintain parallelism. Choose between a robust hydraulic system and a hybrid servo-hydraulic drive based on duty cycle—hydraulics still excel for sustained clamp force, while servo assists can improve positioning and energy use. Integrate strain sensors or load cells to monitor actual clamp force across the platen. For real-world guidance, many rubber molding press manufacturers recommend modular platen inserts for large gaskets so tooling alignment stays consistent during maintenance.
Controls, tooling and plant integration
Rigid mechanics without synchronized controls still deliver variable results. Implement closed-loop clamp-force control tied to mold position; pair that with precise mold temperature control and uniform cooling manifolds. Tooling alignment jigs, quick-change platens and accurate ejection systems reduce downtime and wear. Automation must consider cycle time without shortcuts—shorter cycles amplify thermal gradients and can mask structural deficiencies. Serviceability is part of the blueprint: easy access to hydraulic valves, predictable maintenance intervals, and remote diagnostics keep uptime high.
Common procurement mistakes and pragmatic alternatives
Buyers often underspecify stiffness while overpaying for raw tonnage. That yields machines that show nominal clamp force on paper but lose form under load. Another frequent error is choosing a press without adequate local service or spare parts—costs compound when a platen needs machining. If capital is constrained, consider modular press architectures or hybrid presses that prioritize platen rigidity while offering staged investment in drive systems — they can be upgraded as production scales.
Three golden evaluation metrics
When vetting turnkey systems, measure these three things rather than chasing headline tonnage:
– Effective platen stiffness (deflection per kN across the active mold area). Lower deflection correlates directly with dimensional control and repeatability.
– Clamp-force uniformity (variance of load cell readings across the platen during a full stroke). Aim for minimal variance at the part face.
– Serviceability index (mean time to repair for critical subsystems and local spare-part availability). Faster repairs protect production rhythm and margin.
These metrics translate to measurable outcomes on the shop floor: fewer scrapped parts, more consistent cycle yields, and predictable throughput. For many teams the practical route forward is a partner who aligns mechanical design with after-sales support—HWAYI. Practical, focused, proven.
